       ►   Wave Springs






Wave springs are widely applied to machinery, car, bearing pre-load,   valve, motor, connector, pump, face seal, slip clutch,  and  etc. Wave Springs offer the unique advantage of Savings of up to 50% space during installation. With a smaller assembly size and less material used in the manufacturing process, a cost savings is realized.

 We manufacture  various Multi Turn Wave Springs, Single Turn Wave Springs and Nested Wave Springs. our engineers will work with you to develop special parts to meet your application requirement. Please show us the drawing or requirement details so that we can provide a quick and efficient service.

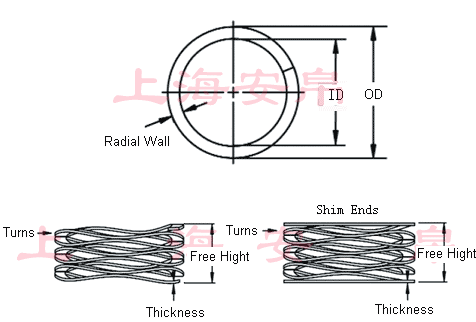

      Multi Turn Wave Spring

wave spring

Number of waves: 2.5-10

Number of turns: 3-20

Ends: Multi-wave or shim ends

Material:

  • Stainless steel: SS302,SS316,17-7PH

  • Carbon steel:  AISI 1070

  • Super alloy .Inconel 718, Inconel X-750

  • Other material on your request.


   Single Turn Wave Springs

wave spring

Number of waves: 3-10

Material:

  • Stainless steel: SS302,SS316,17-7PH

  • Carbon steel:  AISI 1070

  • Super alloy .Inconel 718, Inconel X-750

  • Other material on your request.


   Nested Wave Springs

Number of waves: 3-10

Material:

  • Stainless steel: SS302,SS316,17-7PH

  • Carbon steel:  AISI 1070

  • Super alloy .Inconel 718, Inconel X-750

  • Other material on your request.

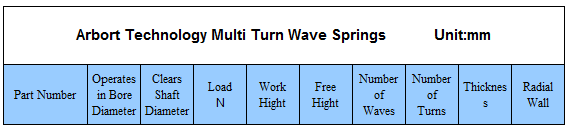

Multi Turn Wave Springs







From 8mm to 200mm, Other sizes are available on request.
